Simpson Strong Tie A24Z 2" x 3-7/8" Angle - Zmax Finish

Strong-Tie A angles provide a way to make a wide range of 90 degree connections. The Strong-Tie A24Z angle features a G185 ZMAX galvanized finish for added corrosion resistance and requires the use of hot-dip galvanized fasteners which meet the specifications of ASTM A153.

Simpson Strong-Tie A34Z FRAMING ANCHOR, 1-7/16"x 2-1/2"

Used to reinforce right angle connections. Fastens wood to wood. This product is made to help resist lateral forces. Great for home repair projects. 90 deg. angle. Galvanized steel. Some sizes available with ZMAX coating.

Post and column bases secure the bottom of posts or columns to concrete and are perfect for decks or patio covers. Models are available for attaching to existing hardened concrete, wet concrete, as well as wood. The AB series also offers adjustability around the anchor bolt to achieve optimum post placement. Many models provide a 1-in standoff from the concrete to help avoid post-end rot from moisture.

Attaches a post to existing concrete for decks, patio covers and other top-supported structures
Features 1-in standoff to help prevent rot at post end
Slotted for adjustability
Designed for versatility, cost-effectiveness and maximum uplift performance
Nominal post size: 6x6
Made from 14-Gauge steel
Z-MAX galvanization offers extra corrosion resistance for exterior and treated-wood applications
Install with 16d common nails or 10 x 1-1/2 strong-drive SD screws

SIMPSON 4 X 4 ADJUSTABLE POST BA

The ABU is an adjustable post base which offers moisture protection and finished hardware appearance. Manufactured with ZMAX steel for enhanced corrosion resistance. These post bases feature a 1" stand-off height above concrete floors, code-required when supporting permanent structures that are exposed to the weather, or water splash, or in basements. They reduce the potential for decay at post and column ends. Post bases do not provide adequate resistance to prevent members from rotating about the base and are not recommended for non top-supported installations (such as fences or unbraced carports). Place the standoff base and then the post in the ABU and fasten using nails or Strong-Drive SD Connector screws or bolts.

Outdoor accents, 2x zmax, black powder coated 90 degree galvanized steel angle, stronger than angled nailing or screw fastening alone, for outdoor living or home repair projects, install with outdoor accents connector screws for decorative look & maximum strength sold separately, extra corrosion resistance for exterior & treated wood applications.

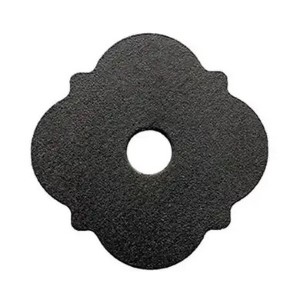

Outdoor accents, z-max, 9/16" x 3 inches, black, powder coated galvanized steel decorative washer, extra corrosion resistance for exterior & treated wood applications.

Outdoor accents, zmax, 4 inches x 4 inches, black, powder coated galvanized steel flat t strap, install with outdoor accents structural screws & hex head washer for decorative look, extra corrosion resistance for exterior & treated wood applications.

The GA angle is a small, versatile angle designed to improve corner stability. The engineered and tested gusset in the angle increases strength for lateral and uplift loads. The GA installs easily with nails, or for increased loads, with Strong-Drive Connector screws.

Not only do angles make joints stronger, they also provide more consistent, straight corners. Simpson strong-tie offers a wide variety of angles in various sizes and thicknesses to handle light-duty jobs or projects where a structural connection is needed. Some can be bent (skewed) to match the project. For outdoor projects or those where moisture is present, use our zmax zinc-coated connectors, which provide extra resistance against corrosion (look for a "z" at the end of the model number). 3-1/4 in. Length install with 10D common nails or #9 x 1-1/2 in. Strong-drive sd screws.

H3z hurricane tie zmax, various configurations of wind & seismic ties for trusses & rafters.

The LRUZ offers an economic alternative for those applications requiring a sloped hanger for rafter-to-ridge connections. Used with solid sawn rafters, the LRUZ's unique design enables the hanger to be installed either before or after the rafter is in place. The field-adjustable seat helps improve job efficiency by eliminating mismatched angles in the field and lead times associated with special orders. The LRUZ offers comparable or better load capacity to other rafter hangers at a reduced cost while using fewer fasteners.

The open design and ability to field-adjust the slope make the LRUZ ideal for both retrofit or new applications
Accommodates roof pitches from 0:12 to 14:12
Slopes up or down to 45-degrees (12:12) - for slopes greater than 45-degrees up to 49-degrees (14:12), allowable loads are 0.85 of table
loads
For added versatility, the fasteners on the face of the hanger are placed high enabling the bottom of the rafter to hang below the ridge beam
For nominal rafter sizes: 2x6, 2x8
Seat width: 1-9/16 in.
Made from 18-Gauge steel
ZMAX galvanization offers extra corrosion resistance for exterior and treated-wood applications
Install with 0.148 in. x 3 in. nails, 0.162 in. x 3-1/2 in. nails or #10 x 1-1/2 in. or 2-1/2 in. Strong-Drive SD screws

The LRUZ offers an economic alternative for those applications requiring a sloped hanger for rafter-to-ridge connections. Used with solid sawn rafters, the LRUZ's unique design enables the hanger to be installed either before or after the rafter is in place. The field-adjustable seat helps improve job efficiency by eliminating mismatched angles in the field and lead times associated with special orders. The LRUZ offers comparable or better load capacity to other rafter hangers at a reduced cost while using fewer fasteners.

Open design and ability to field-adjust the slope make the LRUZ ideal for both retrofit or new applications
Accommodates roof pitches from 0:12 to 14:12
Slopes up or down to 45? (12:12) - for slopes greater than 45? up to 49? (14:12) allowable loads are 0.85 of table loads
For added versatility, the fasteners on the face of the hanger are placed high enabling the bottom of the rafter to hang below the ridge beam
For nominal rafter sizes: 2 in. x 6 in., 2 in. x 8 in., 2 in. x 10 in.
Seat width: 1-9/16 in.
Made from 18-Gauge steel
ZMAX galvanization offers extra corrosion resistance for exterior and treated-wood applications
Install with 0.148 in. x 3 in. nails, 0.162 in. x 3-1/2 in. nails or #10 x 1-1/2 in. or 2-1/2 in. strong-drive SD screws

Not only do angles make joints stronger, they also provide more consistent, straight corners. Simpson strong-tie offers a wide variety of angles in various sizes and thicknesses to handle light-duty jobs or projects where a structural connection is needed. Some can be bent (skewed) to match the project. For outdoor projects or those where moisture is present, use our zmax zinc-coated connectors, which provide extra resistance against corrosion (look for a "z" at the end of the model number). 3-3/8 in. Length install with 10D common nails or #9 x 1-1/2 in. Strong-drive sd screws.
